The RESTful API architecture

DRF is an extension of Django for developing and deploying RESTful APIs.

  • Introducing RESTful APIs
  • Building RESTful APIs with DRF
  • Error handling

RestAPI Architecture

Introduction

RESTful APIs cover the following basic parts:

intro

  • Resources:

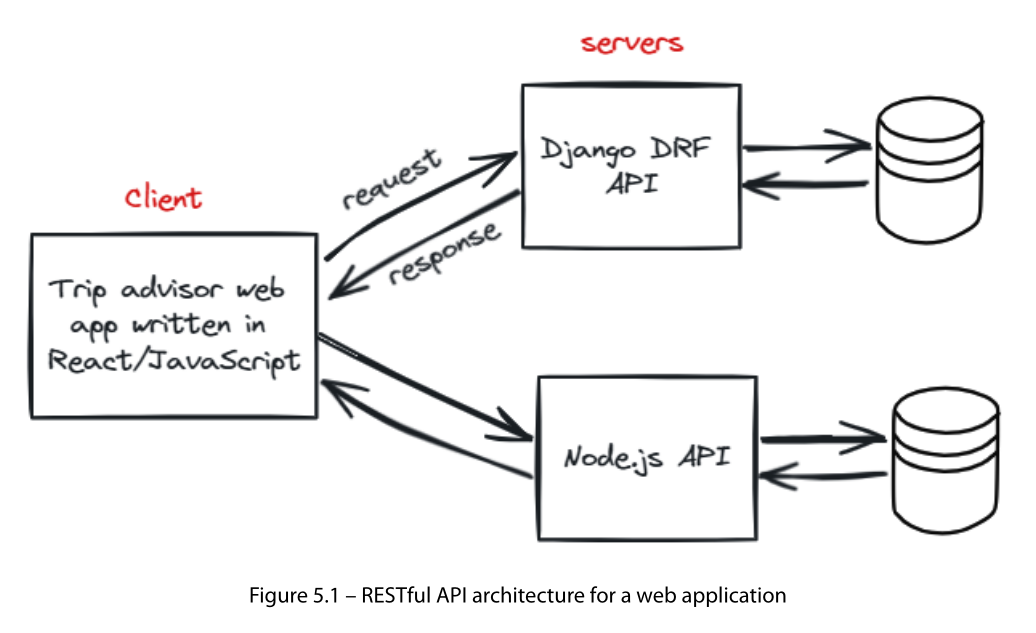

    The information a client can request where the API gathers the information per entity as a resource such as a customer or product. In the example of Figure 5.1, the trip is a resource. And for our sample microservices application, the address is a resource.

  • Endpoints:

    The URLs where the API exposes itself and clients send requests.

And RESTful APIs process these parts to handle requests:

  1. HTTP methods: The methods a client uses to send a request to an API:

    methods

    • GET request: Retrieve data about a resource
    • POST request: Create a resource
    • PATCH request: Update a resource partially
    • PUT request: Overwrite a resource entirely
    • DELETE request: Remove a resource

  2. Parameters: The options clients send to an endpoint to retrieve specific resource information or to authenticate:

    parameters

    • Header: Such as an API security key to authorize a request
    • Path: As part of the called URL to address a specific resource
    • Query string: As part of the called URL to select a subset of resources

  3. Request body: The JSON or XML objects a client sends to an API as resource data

Let’s bring these parts together in some curl examples. The first example requests a list of all hostels in the Tripadvisor system:

$ curl -X GET https://api.trip.com/v1/hostels/

Building RESTful APIs with DRF

DRF is an extension of Django for developing and deploying RESTful APIs.

Abstract

DRF provides us with these functionalities:

  • The actual API that clients can access through one or more endpoints
  • Serializers that collaborate with Django ORM to transform data from data source to JSON and the other way around
  • A set of pre-defined views to quickly and easily create API endpoints for CRUD operation

DRF

If we transpose this to Django and zoom in on the Django file structure, we’ll see that DRF is primarily about these standard Django files:

  • models.py: Containing the data model for our API
  • views.py: Containing the API viewset and specifications for CRUD operations
  • urls.py: Containing the endpoints for our API views

There is also this specific DRF file:

  • serializers.py: Containing the serialization specification for the model

These files work closely together as the serializer; the view uses the model (the serializer), and the URL file uses the view.

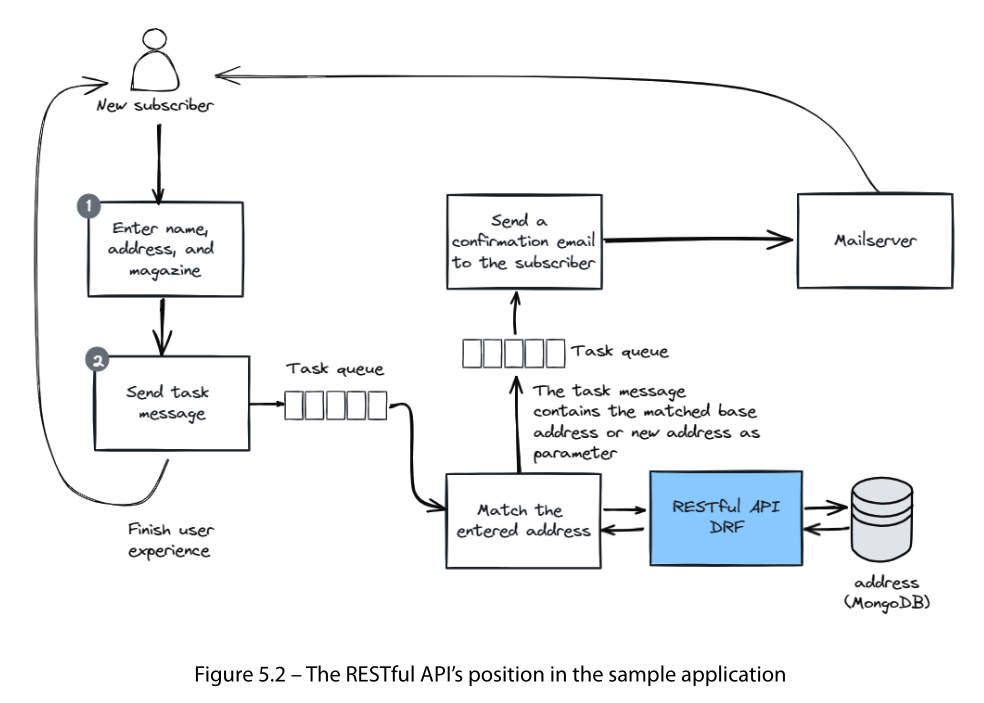

With this in mind, let’s start building a RESTful API for our subscription application

DRF API

The RESTful API will have this directory structure:

subscription_apis/
│
├── address_api/
│   ├── models.py
│   ├── serializers.py
│   ├── urls.py
│   └── views.py
│
├── subscription_apis/
│   ├── urls.py
│   └── settings.py
│
└── manage.py

And to build the RESTful API, we’ll take this route:

  1. Setting up DRF
  2. Creating a model and a serializer
  3. Creating a view and a URL file for the endpoints
Creating a view and the URL endpoints

DRF was first released in 2011, and over time, the view mechanism evolved from function-based to class-based views

Function-based views are, as their name implies, based on a Python function, which defines the view’s behavior. A function becomes a function-based view by decorating it like this:

@api_view(['GET', 'POST'])
def address_list(request):
    if request.method == 'GET':
       ...
    elif request.method == 'POST':
        ...

The @api-view decorator promotes the address_list function to a function-based view, which clients can access through the GET and POST methods. Consequently, the if ... elif section handles GET and POST requests.

Likewise, class-based views are based on DRF-specific Python classes:

class AddressViewSet(viewsets.ModelViewSet):
    queryset = Address.objects.all()
    serializer_class = AddressSerializer

The generic ModelViewSet class integrates all HTTP methods, including PUT and DELETE, and covers most RESTful API requirements. All we have to do is specify a queryset object and a serializer_class object for the viewset, and DRF takes care of the rest.

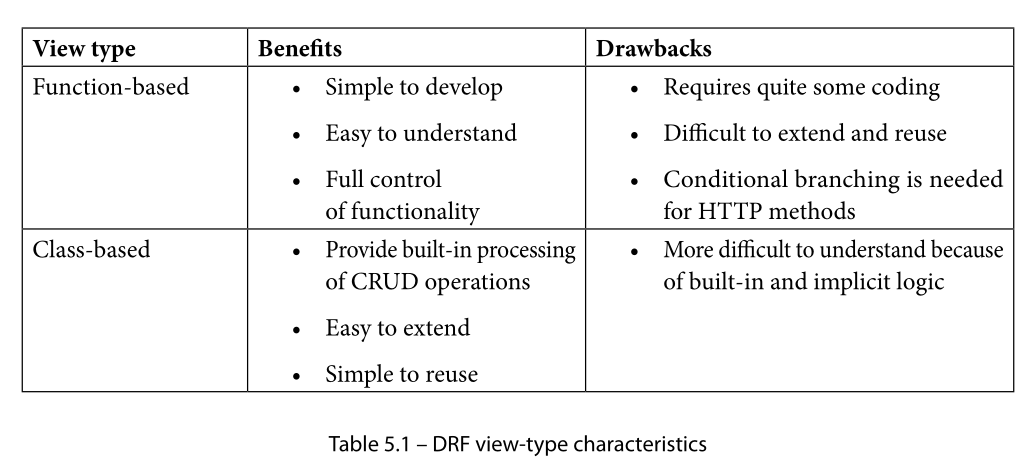

DRF View Types

Despite the evolution from function-based to class-based views, both view types still exist today, and their characteristics and differences come down to this:

Important note

In general, apply class-based views if you can and function-based views if you must because of some specific functionalities offered only by function-based views.
